Download PDF

Manufacturer: Novacos

Product Model: RSN-P (RoadSensor NOVACOS-Piezo)

RSN-P is a surface-mounted piezoelectric traffic sensor engineered for reliable vehicle detection and data collection. Designed for high-traffic environments, this sensor minimizes road surface deformation and effectively eliminates signal interference from adjacent lanes and approaching vehicles.

NOVACOS’s advanced technology enables installation with minimal road cutting, significantly reducing surface damage and the amount of material needed for road restoration.

Key Features

High-Precision Traffic Data Collection

• Generates high-amplitude piezoelectric signals for accurate vehicle classification and counting
• Effectively suppresses signal noise from side lanes and nearby vehicle activity
• Superior load sensing performance using advanced sensor materials

Optimized Installation & Configuration

• Configurable for diverse road conditions
• Minimal road cutting and reduced use of resin materials
• Consistent depth installation ensures optimal signal leveling and road quality
• Pre-tested for 100% reliability prior to delivery

Durability & Application Suitability

• Engineered for long-term operation under demanding road conditions
• Tested to meet the high-performance standards of Korean expressways
• Built to exceed client expectations in durability and stability

Download PDF

Manufacturer: DFS (DataFromSky)

Product Model: TrafficXRoads

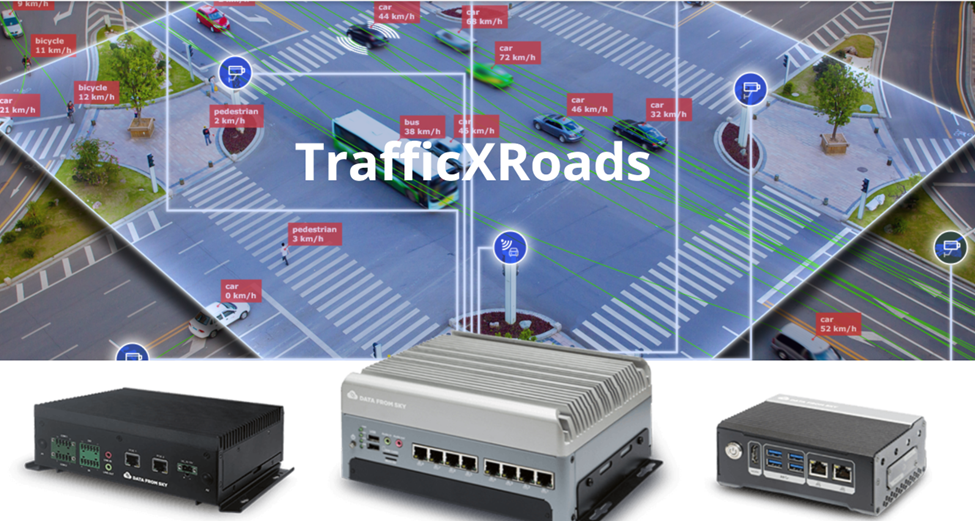

TrafficXRoads I131-O-NX8-1TB is an embedded video analytics computer designed for real-time traffic detection, dynamic traffic light control, and data collection from IP cameras. Powered by a robust NVIDIA Jetson Orin NX processor, the system runs an AI-based detection and tracking algorithm that transforms any video stream into high-quality trajectory data for road users.

Capable of analyzing data from up to 6 connected cameras in real-time with an operating range of over 80 meters, this unit features a highly optimized and fully configurable trajectory processing engine that can evaluate dozens of detection tasks per camera in parallel.

Key Features

Real-Time Traffic Detection & Control

• AI-powered analysis for up to 6 video streams
• Dynamic control of traffic light signaling
• Operating range: 80+ meters
• Compact form for easy traffic cabinet installation
• Remote configuration and firmware updates

Detection Configuration with FLOW Framework

• Flexible detection setup using FLOW: spatial, temporal, or attribution filters
• Quick setup of advanced scenarios (e.g., U-turn, queue, average speed)
• Emulation of inductive loops at any point in the camera view
• Fully interactive system with real-time response to new configurations

Data Visualization & Export

• Aggregated statistics: whole history, time blocks, floating window, or custom intervals
• Visualization via custom dashboards (heatmaps, tables, trajectories, stats)
• Open APIs for 3rd-party integration
• Export data in various formats

Connectivity & Communication

• Protocols supported: NTCIP, J2735, UDP, SDLC, etc.
• Scriptable actions and outputs based on event detection or performance metrics
• Two GigE PoE ports for connecting IP cameras or other devices
• Operating temperature range: -40°C to 75°C

Applications

Dynamic Traffic Control

• Vehicle presence detection
• Speed monitoring and level of service
• Queue length and lane occupancy analysis
• Gap time & space estimation, ETA prediction

Traffic Violation Monitoring

• U-turn detection
• Wrong-way driving detection
• Illegal lane change detection
• Red-light violation detection

Vulnerable Road User Protection

• Pedestrian and cyclist presence
• Conflict detection (e.g., vehicle-pedestrian interactions)
• Jaywalking detection
• Personal safety messages (J2735 compliant)

Download PDF

Manufacturer: DFS (DataFromSky)

Product Model: TrafficCamera

TrafficCamera

B8M40-110F30V2

TrafficCamera is an outdoor bullet camera with on-board video analytic engine FLOW. It is an all-in-one edge solution enabling every feature of a distributed video-analytics environment for smart traffic, parking, retail or security. Thanks to the local processing it is 100% GDPR compliant and has small bandwidth requirements. The TrafficCamera is affordable, easy to set up and a highly reliable multipurpose sensor supporting event based alerts and triggers. Thanks to the open API and webhooks it can be easily integrated with 3rd party smart city systems and data platforms. Connection and power are achieved with POE, and the camera is equipped with IR with a max distance of 30 meters for better low light vision and a fully motorized zoom allowing easy adjustment of the field of view from 40° to 110°. The camera also has automatic updates and can be configured remotely. Discover the next generation of actionable video intelligence packed into a single extremely versatile product – the TrafficCamera; your plug and play sixth traffic sense.

TrafficCamera is an ideal choice for monitoring smaller areas or not so complex scenes such as two-lane roads, tunnels, pedestrian paths, entries or exits etc. Thanks to an onboard fully featured video analytic engine capable of processing and evaluating the extracted traffic data in a fully customizable way, it can send real-time alerts or directly control other connected devices including signs or gates. All statistics could be visualized on a camera dashboard. It is a fully functional stand-alone traffic monitoring solution without the need of a server-side part of its operation.

Traffic violations detection

• Wrong-way driving
• Illegal lane change
• Blocking vehicle detection

Safety & security

• Object presence alert
• Suspicious behavior detection

Retail

• Queue detection
• Heatmaps, stationary time
• Measuring of attractiveness

Traffic flow improvement

• Congestion detection
• Level of service measurement
• Traffic statistics

Parking

• Occupancy
• Parking time
• Wrong parking

General

• Behavioral analysis
• Counting / statistics
• Occupancy / presence data

Download PDF

Manufacturer: DFS (DataFromSky)

Product Model: Enterprise

Traffic Enterprise (Server Based Solution)

Convert any camera network to real-time traffic intelligence for smart cities of tomorrow.

The sixth traffic sense running on in-house AI servers.

Turn your city cameras into a cooperative smart network.

Discover the visual solver for all traffic tasks with a fully interactive interface. Become a designer of all traffic automations you need.

Makes Cameras Collaborative

The most advanced traffic AI works automatically across all video streams and computes deep traffic metrics in true real-time. This all from hundreds of cameras from anywhere on one platform.

Full Control in All Aspects

Deployable on AI city servers. Features open API for easy integration with other city platforms. No cloud, all in the house.

The one traffic analytic solution that smart cities love (GDPR compliant).

Download PDF

Manufacturer: Blue-Band

Product Model: Blue-Band

Blue-Band (www.blue-band.net for pictures) — This product operates on the DFS TrafficXRoads and Enterprise systems.

The Most Versatile Edge Compute Platform in Traffic!

“Our technology isn’t just another tool in the toolbox; it’s a game-changer that the industry simply can’t afford to overlook. With its unparalleled versatility and seamless integration capabilities, our edge compute platform revolutionizes traffic management, making it indispensable for optimizing transportation systems and safeguarding vulnerable road users.”

Our Differentiator: A Fully-Integrated Ecosystem

Discover our unique advantage: a seamlessly integrated ecosystem powered by the Integrator-AI™. Acting as the city’s central command center, it orchestrates communication between diverse devices at every site, synthesizing data for informed decision-making and real-time interventions. Enhancing traffic flow, ensuring pedestrian safety, and furnishing invaluable insights for the future. Unlock efficiency and foresight with our integrated system.

Discover Integrator-AI™

Scalable, Secure & Future-Proof Solutions via Transportation Fusion

Transform your approach to traffic technology with Integrator-AI™, a revolutionary product that simplifies the transition from concept to deployment. As a comprehensive solution, Integrator-AI™ enables efficient and intelligent traffic control.

What is Transportation Fusion?

Transportation fusion is the process of integrating multiple transportation devices/services simultaneously on a single platform. This is important because it enables sophisticated data analysis, coordination, and real-time action between devices.

SPM+ : Signal Performance Measures with Enhanced Data Fusion

The Integrator-AI™ modernizes Signal Performance Measures with SPM+, a new approach to servicing road users. By integrating connected vehicles and cutting-edge technologies into existing infrastructure, it enhances safety and efficiency. Edge computing adds vital, life-saving capabilities—as if a dedicated traffic operation team is at each intersection.

SPM+ comprises five key components:

• Pedestrian and Cyclist Data Integration
• Safety Conflicts Analysis
• Real-time Dynamic Interventions
• Customizable Use-Case Remedies
• Signal Performance Measures Analytics

V2X/Connected Vehicles: Integration of Legacy & Modern Communication

Integrator-AI™ excels at seamlessly merging sensor data with infrastructure information. Utilizing real-time analytics, advanced deep learning, and AI technologies, Integrator-AI™ orchestrates automated responses to optimize traffic patterns, improve road safety, and reduce congestion. Our adaptive traffic management system dynamically adjusts to conditions, enhancing efficiency and effectiveness in urban transportation.

Adaptive Pedestrian Detection: Real-Time Detection for Vulnerable Road Users

Integrator-AI™ takes safety to the next level by activating real-time detection zones specifically designed to protect vulnerable road users. This system utilizes advanced edge computing technology to communicate with various traffic controllers and notification platforms seamlessly, ensuring compatibility across different sensor types.

The primary goal is to create the safest possible environment for pedestrians.

Key Features Include:

• Dynamic Pedestrian Crosswalk Timing: Adjusts signal timing based on real-time pedestrian traffic flow to enhance safety and efficiency.
• Extended Timing for Slower Pedestrians: Automatically extends crosswalk signal duration to accommodate individuals requiring more time to cross, ensuring a safer pedestrian crossing experience.

Download PDF

Manufacturer: Smartek Systems

Product Model: SVS

The SVS-1 video image detection system is a very affordable and easy-to-install alternative to "in-pavement" magnetic loops.

The SVS-1 delivers reliable intersection stop line vehicle detection using state-of-the-art processing hardware designs and sophisticated processing algorithms.

The SVS-1 Processor can be configured for up to six (6) "off-the-shelf" NTSC cameras. That means six intersection approaches can be covered using just one small footprint SVS-1 processor.

The SVS-1 can be set up using only a mouse and monitor or via a PC running SmarTek's easy-to-use SVS Setup and Monitor software.

Features and Specifications

• Setup using a mouse and monitor or via a PC with SmarTek software.
• True Vehicle Presence – Call is held while vehicles are in the zone.
• Low Installation Cost, configurable for up to 6 NTSC cameras.
• 30 directional zones per camera, flexible grouping logic per phase.
• Up to 8 opto-isolated Vehicle Presence Relay outputs per camera.
• Vehicle Presence Relay routing to onboard connector.
• Vehicle Presence Relay routing to external relay cards.
• SDLC Interface eliminates need for detector cardfiles.
• Six opto-isolated inputs for the Shelf Mount model.
• Low Power Requirements – 12 VDC to 24 VDC.
• Dimensions: 4.5" H x 6.75" W x 8.0" L for Shelf Mount model.
• Dimensions: Standard TS-2 Card form factor for Single Camera card.
• Temperature Range: –35°C to +75°C
• Two-Year Warranty

Download PDF

Manufacturer: DataCollect

Product Model: DSD Digital Safety Display

Our latest generation of radar speed display combines many years of experience, innovation, and development from the world’s premier manufacturer of road safety education systems. Developed with an industry-leading radar sensor, our DSD is capable of accurate measurement of speed from 2 mph (3 km/h). Physical enhancements include a lightweight case, reducing installation time to just 5 minutes.

Choose Between 3 Different DSD Models

Each comes with advanced features that can be individually customized to your preferences.

Flex-Display Features:

• One or two-lined LED text
• Your individual text
• Adjustable type sizes
• Scrolling text for longer messages
• Static text or flashing mode

Your Site, Your Safety Message!

We can place your city logo, company logo, individual picture, message, or skyline on the DSD.

myTrafficData Integration (DSD Smart & DSD Pro)

Get real-time efficiency data with your device:

• What is the current vehicle speed level on this road?
• How many vehicles are traveling on this road?
• What vehicle speed reduction could be achieved by the use of the DSD?

Download PDF

Manufacturer: DataCollect

Product Model: SDR

SDR traffic – The high-performance traffic data classifier for two lane/direction roads.

Which kind of traffic data do you need today? Which kind you might need in 5 years? The versatile traffic data collection device will collect today and tomorrow’s traffic data and the flash updatable firmware will ensure future compatibility!

You will get answers to the following questions:

• What is the current vehicle speed level per traffic direction?
• How many vehicles are traveling per traffic lane?
• What is the current percentage of truck traffic?
• How many bicycles are riding on our bike lanes?

The SDR is a versatile and reliable traffic classifier using an inbuilt microwave (radar) sensor to measure traffic at a one or two lane (opposite direction) road layout.

The easy setup of the self-calibrating SDR and online traffic monitoring can be done on site by the use of a smartphone without interrupting the traffic flow.

Modern on-board GPRS wireless communication enables the user to access the data remotely without being on site.

The low power design of the SDR in combination with the solar power option extends the SDR data collection capabilities to 365 days per year.

• Binning of traffic in two classes car/truck
• Binning of traffic in 4+ classes, overhead installation available

Easy and enduring: Your system can be updated at any time and GPRS will keep your systems always up-to-date.

Install the newest firmware or book new functions, all from your workplace.

Total control at any time with myTrafficData! Web-based access to your database wherever you are.

You can access your data, visualize statistics and generate reports.

Administration of several products is comfortable and safe.

Download PDF

Manufacturer: Q-Free

Product Model: EMU3

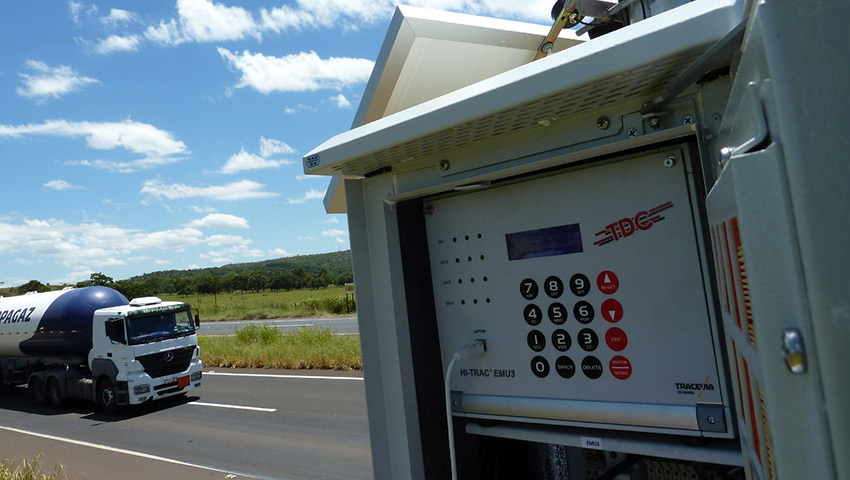

EMU3 is the 3rd generation of the very successful HI-TRAC EMU system which now includes 32MB on-board Flash Memory, standard 8GB Micro SD Memory (expandable to 32GB). The system boasts greater processing power and much lower power consumption. Laptop USB connection and an additional auxiliary communications port are also included as standard.

The unit incorporates interfaces to both piezo electric sensors, inductive loop sensors, and a road-installed temperature probe.

The HI-TRAC EMU3 can be powered from either mains supply or solar panel with associated battery and charge regulator.

The HI-TRAC EMU3 has an integrated communications device that supports GPRS, 2G, 3G, 4G, and Ethernet TCP/IP communications, as well as legacy GSM dial-up.

Detection options include:

• Weigh-in-Motion
• Axle Classification
• Loop Profiling Classification
• Cycle Classification

EMU3 Additional Features…

• Traffic Alerting, Event Monitoring and Incident Detection
• BLUETOOTH Mac Address Reader Interface for Journey Time Measurement and Traffic Movement Tracking
• Vehicle-by-Vehicle (VBV) Data Recording
• Pre-programmed or user-defined classification schemes (e.g. EURO 6, UK DfT, FHWA, AUSTROADS)
